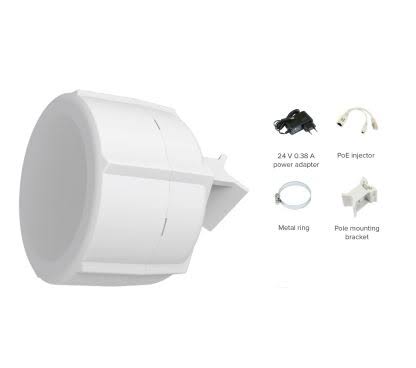

SXT LTE6 kit is a device for remote locations that are within cellular network coverage. Due to its advanced LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones fail.
The new SXT LTE6 features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. It also has two Micro SIM slots for backup link. Unit is shipped with a 24 V power supply, but can support full range 18-57 V and is 802.3af/at compliant.
|CPU core count||1|
|CPU nominal frequency||650 MHz|
|Size of RAM||64 MB|
|Storage size||16 MB|
|Tested ambient temperature||-30°C to 60°C|
|PoE in input Voltage||12-57 V|
|PoE out||Passive PoE up to 57V|
|Number of DC inputs||1 (PoE-IN)|
|Max out per port output (input > 30 V)||400 mA|
|Max out per port output (input < 30 V)||600 mA|
|Max total out (A)||600 mA|
|3G Category||R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)|
|LTE Category||6 (300Mbit/s Downlink, 50Mbit/s Uplink)|
|LTE FDD bands||1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)|
|LTE TDD bands||38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)|
|2G bands||2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)|
|3G bands||1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)|
|10/100 Ethernet ports||2|
|Number of SIM slots||2 Modem (Micro SIM)|
Certification & Approvals
|Certification||CE/RED, EAC, ROHS|
