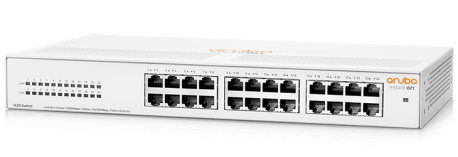

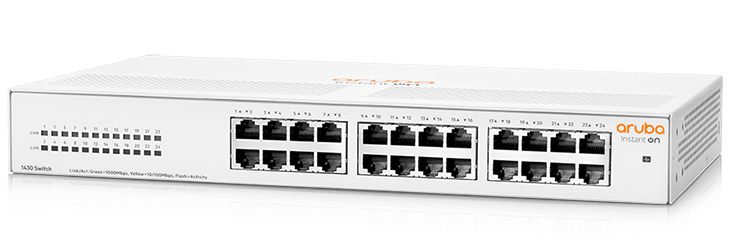

Aruba R8R49A IOn 1430 24G switch

The Aruba Instant On 1430 24G Switch (R8R49A) is an unmanaged Gigabit Ethernet switch designed for small businesses and home offices that need a simple, affordable, and reliable way to connect their devices. This switch offers 24 Gigabit Ethernet ports, allowing you to connect computers, printers, servers, and other devices to your network at high speeds. It is also easy to set up and use, even for users with no prior networking experience.

Key Features:

  • Gigabit Ethernet performance: Delivers high-speed data transfer for demanding applications like streaming video, VoIP, and cloud computing.
  • 24 Gigabit Ethernet ports: Provides Gigabit Ethernet connectivity for up to 24 devices, such as computers, printers, and servers.
  • Easy to set up and use: Plug-and-play design makes it easy to get your network up and running quickly.
  • No networking experience required: No configuration or management is required, making it perfect for users with no prior networking experience.
  • Reliable performance: Built with high-quality components to provide years of reliable service.
  • Affordable: An affordable networking solution for small businesses and home offices.

Benefits of Using Aruba Instant On 1430 24G Switch (R8R49A):

  • Improve network performance: Gigabit Ethernet speeds provide faster data transfers for all your devices.
  • Expand your network: Easily connect additional devices to your network as needed.
  • Save time and money: Easy setup and use saves you time and money.
  • Get reliable performance: Enjoy years of reliable performance with high-quality components.
  • Affordable solution: Get a powerful networking solution without breaking the bank.


  • Small businesses: Ideal for small businesses that need a simple and affordable way to connect their devices.
  • Home offices: Perfect for home offices that need a reliable network for computers, printers, and other devices.
  • Classrooms: Can be used in classrooms to connect computers, tablets, and other devices.
  • Dormitories: Great for dormitories that need to provide network access for students.

Technical specifications

Product Number R8R49A

Ports 24 RJ-45 10/100/1000 ports

Memory and processor 128Kb EEPROM, Packet buffer size: 2.0 Mb, Throughput 35.71 Mpps

Switching capacity 48 Gbps

PoE capability -

Management features Unmanaged

Power supply name Internal Power Supply

Input voltage 100-127VAC / 200-240VAC, depending on model

Power Consumption Maximum 11.7W Idle: 3.2W

Product Dimensions (metric) 22.5 x 34.0 x 4.4 cm

Weight 1.91 kg
