The “Improvise. Adapt. Overcome.” mindset can be very helpful, but
sometimes you simply need a device that works and solves the problem

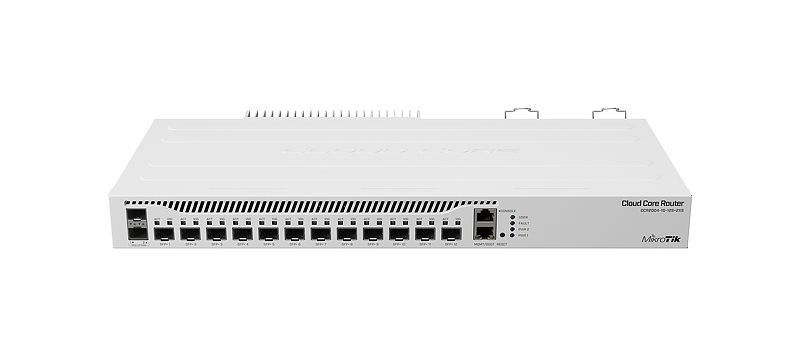

without additional tinkering. The CCR2004-1G-12S+2XS does just that –
forget about all connectivity troubles and expand your setup in any way
you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28
ports.
CCR2004-1G-12S+2XS is our router with the most powerful
single-core performance so far. It provides incredible results in single
tunnel (up to 3.4 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such
MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and
CRS326-24S+2Q+RM, your networking setup will know no bounds.
Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned

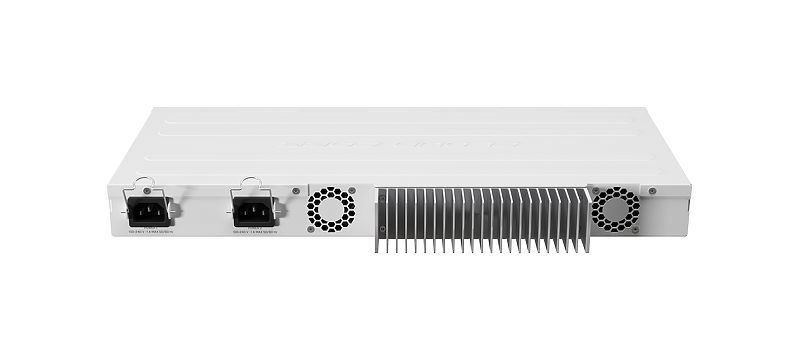

CCR1009/CCR1016 routers. And with dual redundant power supply you can
forget about unexpected downtime! With its elaborate port configuration,
the new CCR2004-1G-12S+2XS is the perfect addition to any professional
networking arsenal – it will save you tons of time in some tricky
situations!
Specifications
| Details |
| Product code |
CCR2004-1G-12S+2XS |
| Architecture |
ARM 64bit |
| CPU |
AL32400 |
| CPU core count |
4 |
| CPU nominal frequency |
1700 MHz |
| Dimensions |
443 x 224 x 44 mm |
| License level |
6 |
| Operating System |
RouterOS |
| Size of RAM |
4 GB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-20°C to 60°C |
| Suggested price |
|
Powering
| Details |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Max power consumption |
49 W |
| Max power consumption without attachments |
32 W |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
| Details |
| SFP+ ports |
12 |
| Number of 25G SFP28 ports |
2 |
Peripherals
Other
| Details |
| CPU temperature monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
Details
Certification
CE/RED, EAC, ROHS
