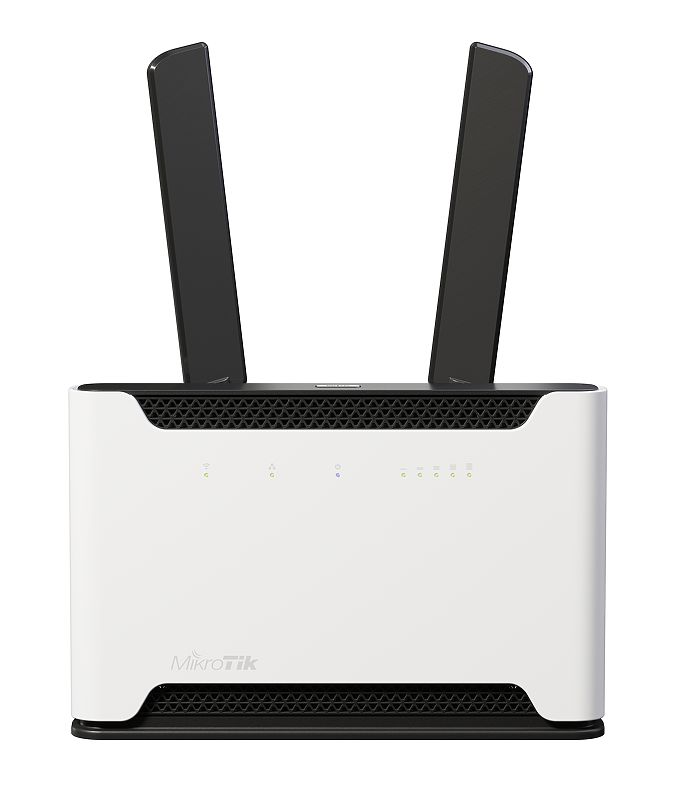

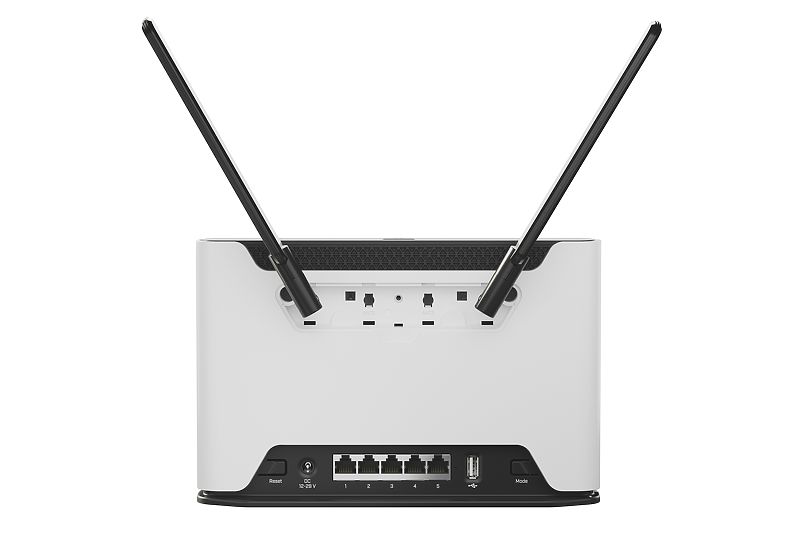

Chateau 5G

One router to delight them all – introducing the ultimate home AP with ultra-fast LTE/5G support


Specifications

Details
Product code D53G-5HacD2HnD-TC&RG502Q-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
Dimensions 240 x 156 x 44 mm
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C


Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
FAN count Passive

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 3
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s25-100
11MBit/s25-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s22-80
MCS026-96
MCS721-75
MCS919-70
