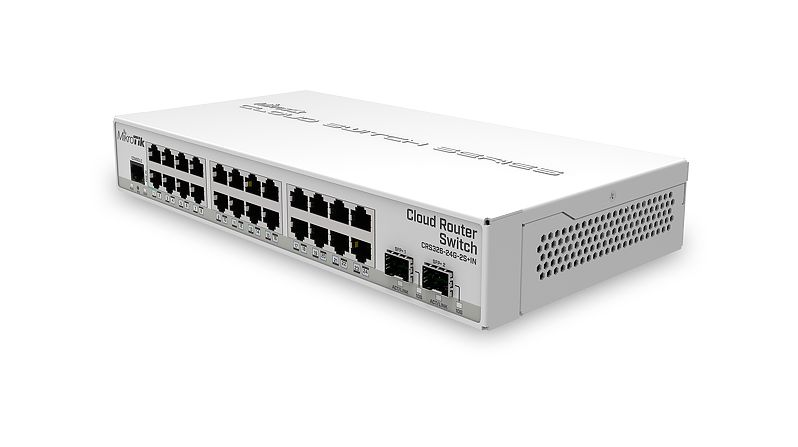

CRS326-24G-2S+IN

A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!

Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!

CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.


Specifications

Details
Product code CRS326-24G-2S+IN
Architecture ARM 32bit
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 285 x 144 x 44 mm
License level 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C
Suggested price $189.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 10-30 V
Max power consumption 21 W

Ethernet

Details
10/100/1000 Ethernet ports 24

Fiber

Details
SFP+ ports 2

Peripherals

Details
Serial port RJ45

Certification & Approvals

Details Certification CE/RED, EAC, ROHS
