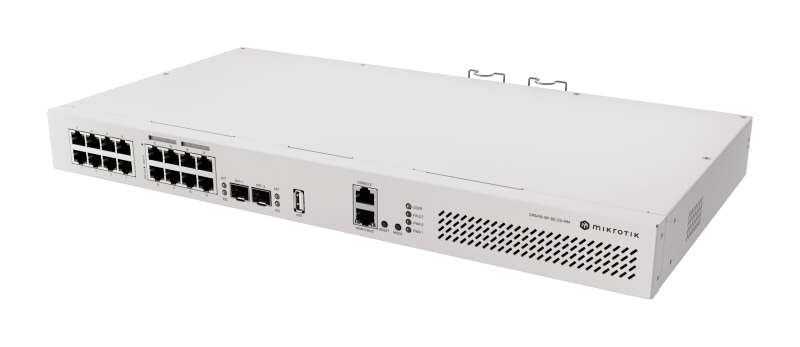

Switch rackmount 1U all-in-one dari MikroTik dengan 16 port Gigabit Ethernet, PoE-out, dual 10G SFP+, dan CPU quad-core 2.2 GHz — pengganti cerdas untuk router, switch, dan firewall sekaligus dalam satu perangkat hemat biaya.

Fitur Lengkap
0116 port Gigabit Ethernet (8 PoE-out 802.3af/at) + 1 port manajemen dedicated — total daya PoE hingga 150 W
022x port SFP+ 10G untuk uplink fiber berkecepatan tinggi ke server, NAS, atau switch core tanpa bottleneck
03Quad-core ARM IPQ-8072 2.2 GHz — performa ~3x lebih cepat dari CRS320/CRS328 untuk routing dan switching kompleks
04L3 hardware offloading — mampu difungsikan sebagai internet gateway, firewall, dan CAPsMAN controller sekaligus
05USB 3.0 untuk konektivitas storage eksternal — cocok untuk logging, backup konfigurasi, dan integrasi perangkat tambahan
061 GB RAM + 128 MB NAND storage — kapasitas memori cukup untuk fitur RouterOS v7 tingkat lanjut dan multitasking jaringan
07RouterOS v7 License Level 5 — VLAN, ACL, SNMP, traffic shaping, routing dinamis, gratis update seumur hidup produk
08Casing rackmount 1U kokoh dan ringkas — manajemen kabel bersih, ideal untuk kantor kecil hingga menengah dan server room


Specification

Specifications
  • Product codeCRS418-8P-8G-2S+5axQ2axQ-RM
  • Suggested price$-
  • ArchitectureARM 64bit
  • CPUIPQ-8072A
  • CPU core count4
  • CPU nominal frequency2208 MHz
  • CPU Threads count4
  • Switch chip model98DX226S
  • RouterOS license5
  • Operating SystemRouterOS v7
  • Size of RAM1 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 70°C
Powering
  • Number of AC inputs2
  • AC input range100-240
  • Number of PSU slots2
  • Frequency (Hz)50-60
  • Max power consumption227 W
  • Max power consumption without attachments43 W
  • Cooling type4 fans
PoE-out
  • PoE-out portsEther9-Ether16
  • PoE out802.3af/at
  • Low voltage PoE-Out current limit1.1 A
  • High voltage PoE-Out current limit0.56 A
  • Total output power150
Wireless specifications
  • Wireless 2.4 GHz Max data rate1148 Mbit/s
  • Wireless 2.4 GHz Number of chains4
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz5
  • Wireless 2.4 GHz chip modelQCN-5024
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains4
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz6
  • Wireless 5 GHz chip modelQCN-5054
  • Wireless 5 GHz generationWi-Fi 6
Ethernet
  • 10/100/1000 Ethernet ports17
  • Number of 1G Ethernet ports with PoE-out8
Fiber
  • SFP+ ports2
Peripherals
  • Serial console portRJ45
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB 3.0 type A
  • Max USB current (A)1
Other
  • CPU temperature monitorYes
  • Current MonitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes
  • Mode buttonYes
Certification & Approvals
  • CertificationCE, FCC, IC, EAC, ROHS
  • IP20
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
