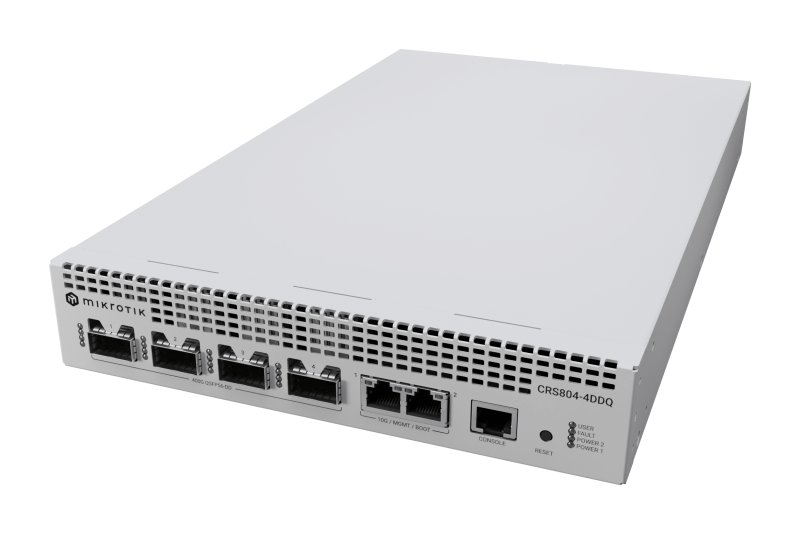

CRS804 DDQ
DAPATKAN PENAWARAN TERBAIK SEKARANGHubungi kami via WhatsApp
CRS804 DDQ
Switch 400G kompak half-rack dari MikroTik untuk AI cluster, storage fabric, dan agregasi kecepatan tinggi. Performa wire-speed 400G dengan desain hemat daya dan harga yang jauh lebih terjangkau dari kompetitor.
Fitur Lengkap
014x port QSFP56-DD 400G — mendukung breakout ke 2x 200G, 100G, atau 40G untuk fleksibilitas integrasi jaringan existing
022x port Ethernet 1G/10G — untuk koneksi manajemen atau uplink perangkat legacy tanpa memerlukan switch tambahan
03Marvell 98DX7335 switch chip — switching hardware penuh wire-speed dengan latensi rendah, ideal untuk AI dan GPU cluster
04Quad-core ARM AL52400 2.0 GHz + 4 GB DDR4 RAM + 512 MB NAND — kontrol penuh RouterOS tanpa mengorbankan performa switching
05Desain half-rack 1U — dua unit bisa dipasang berdampingan dalam satu slot 1U untuk densitas rack yang lebih tinggi
06Konsumsi daya hanya 92 W tanpa optik dan maks 123 W saat full load — efisiensi daya terbaik di kelasnya untuk switch 400G
07Hot-swap power supply redundan + kipas yang dapat diganti — uptime tinggi dan perawatan mudah untuk lingkungan mission-critical
08RouterOS v7 License Level 6 — VLAN, firewall, routing L3, traffic shaping, tanpa biaya lisensi atau langganan tambahan
Specification
Specifications
- Product codeCRS804-4DDQ-hRM
- Suggested price$-
- ArchitectureARM 64bit
- CPUAL52400
- CPU core count4
- CPU nominal frequency2000 MHz
- CPU Threads count4
- Switch chip model98DX7335
- RouterOS license6
- Operating SystemRouterOS v7
- Size of RAM4 GB
- Storage size512 MB
- Storage typeNAND
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-10°C to 60°C
Powering
- Number of AC inputs2
- AC input range100-240
- Frequency (Hz)50-60
- Max power consumption123 W
- Max power consumption without attachments92 W
- Cooling type2 fans
Ethernet
- Number of 1G/2.5G/5G/10G Ethernet ports2 (supported: 10M/100M/1G/10G)
- Number of 400G QSFP56-DD ports4
Peripherals
- Serial console portRJ45
Other
- CPU temperature monitorYes
- PCB temperature monitorYes
- Voltage MonitorYes
Certification & Approvals
- CertificationCE, EAC, ROHS
- IP20
Included parts
Note
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
