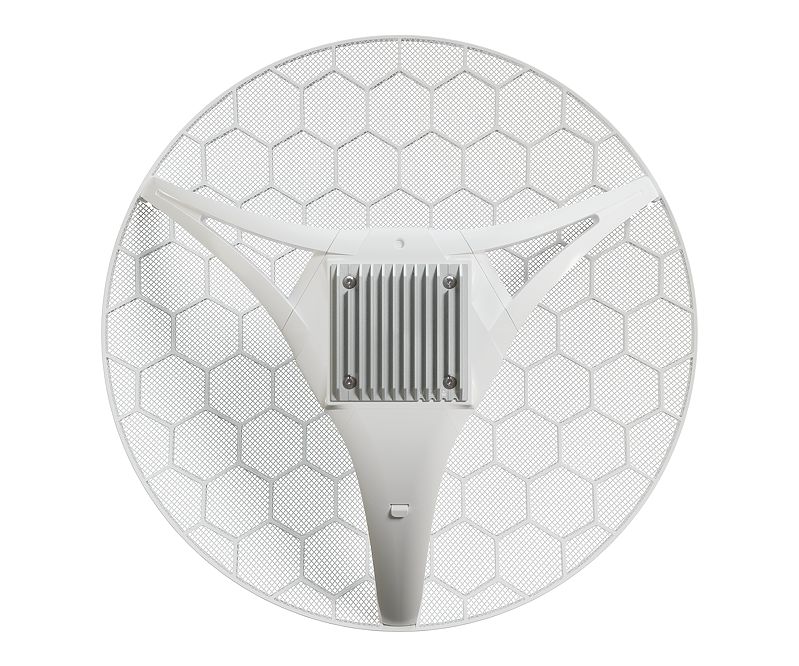

Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.
This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.
|CPU core count||2|
|CPU nominal frequency||800 MHz|
|Dimensions||391 x 391 x 237 mm|
|Size of RAM||256 MB|
|Storage size||16 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-30°C to 70°C|
|PoE in input Voltage||12-57 V|
|Number of DC inputs||1 (PoE-IN)|
|Max power consumption||8 W|
|Max power consumption without attachments||8 W|
|2G bands||2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)|
|3G Category||R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)|
|3G bands||1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)|
|LTE Category||6 (300Mbit/s Downlink, 50Mbit/s Uplink)|
|LTE FDD bands||1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)|
|LTE TDD bands||38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)|
|10/100/1000 Ethernet ports||1|
|Number of SIM slots||1 Modem (Micro SIM)|
Certification & Approvals
|Certification||CE, EAC, ROHS|
