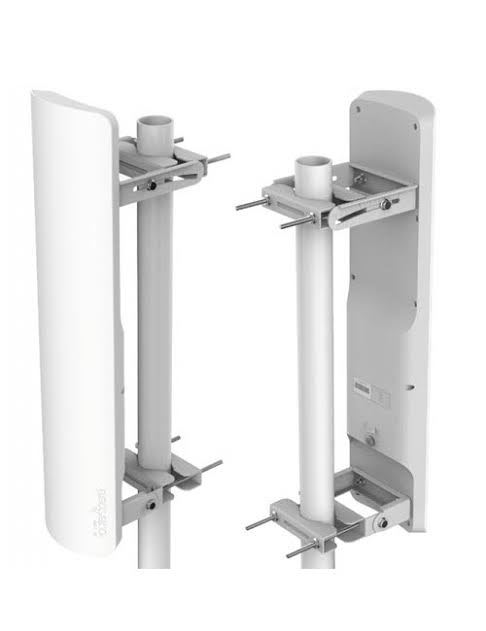

The mANTBox is based on our new mANT sector antennas, but also has a
wireless router built right in. Powered by the RB921 device, the mANTBox
comes ready to use with everything included. The device uses a high
speed 720MHz CPU and has a built in 802.11 ac/a/n wireless device with
up to 31dBm output power.
mANTBox 19s comes with 19dBi 120 degree sector antenna.
We have two versions available - RB921GS-5HPacD-19S (International) and
RB921GS-5HPacD-19S-US (USA). RB921GS-5HPacD-19S-US (USA) is factory
locked for 5.17 - 5.25 GHz and 5.725 - 5.835 GHz frequencies. This lock
can not be removed. RB921GS-5HPacD-19S (International) supports 5.17 -
5.835 GHz range (Specific frequency range can be limited by country
regulations).
Specifications
| Details |
| Product code |
RB921GS-5HPacD-19S |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
152 x 598 x 78 mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$199.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-28 V |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
13 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
19 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Included parts
