This NetMetal version is equipped with a miniPCI-express slot, a SIM
slot for 3G/4G device or additional wireless card, a high power 3x3
triple chain 802.11ac wireless and three RP-SMA connectors for external
antennas

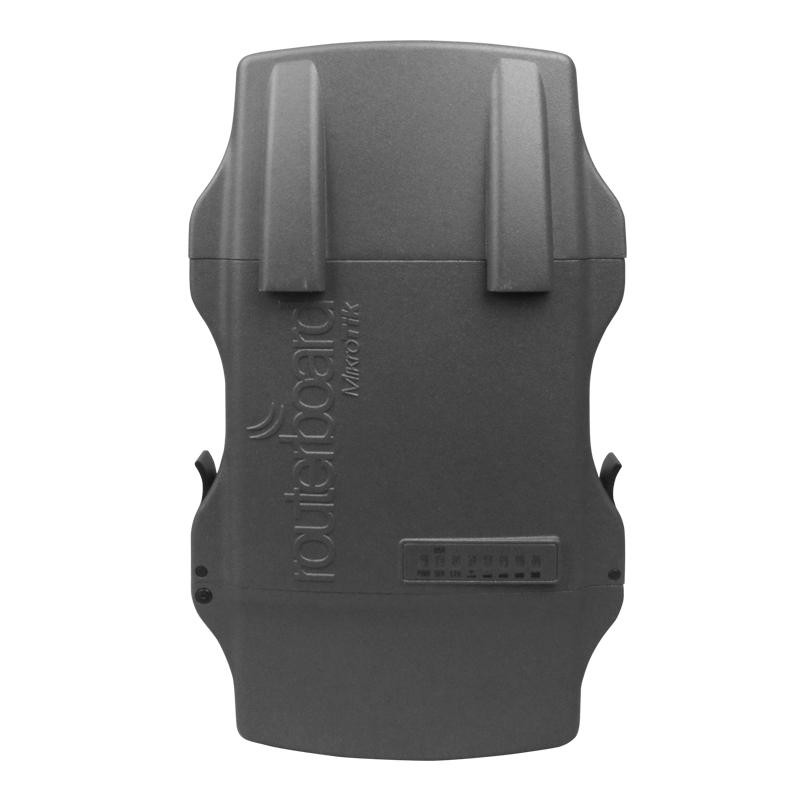

The NetMetal is a 802.11a/n/ac wireless device in a waterproof metal
enclosure (IP54). Its rugged design is made to withstand the toughest
conditions, but at the same time is easy to use and can be opened and
closed with one hand. The solid aluminum enclosure also works as a
reliable heat-sink for its high output power radio.
The NetMetal is equipped with powerful 720Mhz CPU, 128MB RAM, one
Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA
connectors for external antennas and RouterOS L4 license.
- RB922UAGS-5HPacT-NM-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
- RB922UAGS-5HPacT-NM (International) supports 5150MHz-5875MHz
range (Specific frequency range can be limited by country regulations).
Specifications
| Details |
| Product code |
RB922UAGS-5HPacT-NM |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
143x247x48mm (PCB) |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$159.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
23 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
1300 Mbit/s |
| Wireless 5 GHz number of chains |
3 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Wireless 5 GHz chip model |
QCA9880 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Fiber
| Details |
| SFP DDMI |
yes |
| SFP ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 32 | -96 |
| MCS7 | 29 | -77 |
| MCS9 | 24 | -72 |
Included parts
