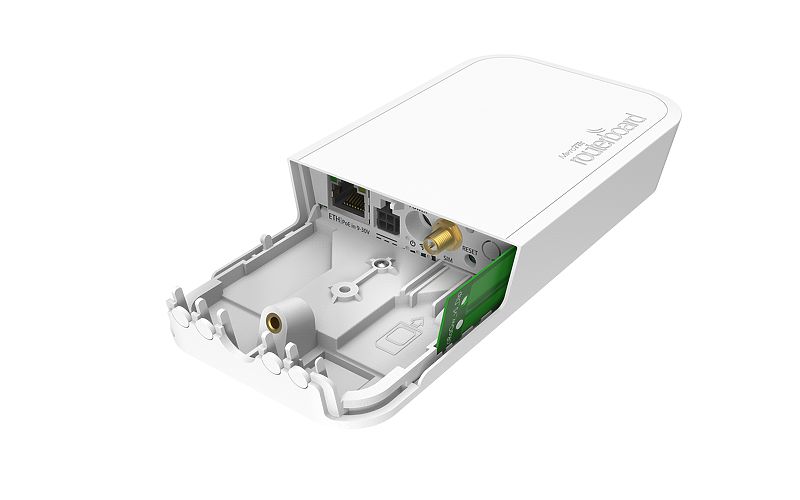

wAP LoRa9 – an out-of-the-box solution to use LoRaWAN gateway. This
kit contains a pre-installed UDP packet forwarder to any public or
private LoRa servers and an outdoor weatherproof wireless access point
with 2.4 GHz WLAN interface and Ethernet port that could be used as a
backend.
This particular wAP form-factor has been tested in many other
MikroTik products – it can deliver excellent and stable performance in
almost any weather conditions.
You can use the optional internal 2 dBi antenna or attach an
external antenna. For extra network coverage we suggest adding MikroTik
LoRa Antenna kit.
Operates in 902-928 MHz frequency (used in United States, Canada, Mexico, Australia, Brazil, many countries in Asia etc.)
Functional and non-intrusive design, astonishing durability
and great value – that is the wAP LoRa9 kit, the long-awaited LoRa
solution for LoRa enthusiasts of any level.
Specifications
| Details |
| Product code |
RBwAPR-2nD&R11e-LoRa9 |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| License level |
4 |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$169.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
9-30 V |
| Number of DC inputs |
3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage |
9-30 V |
| Automotive input Voltage |
9-30 V |
| Max power consumption |
7 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
1 |
Peripherals
| Details |
| Number of SIM slots |
1 Modem (Mini SIM) |
| MiniPCI-e slots |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Included parts
