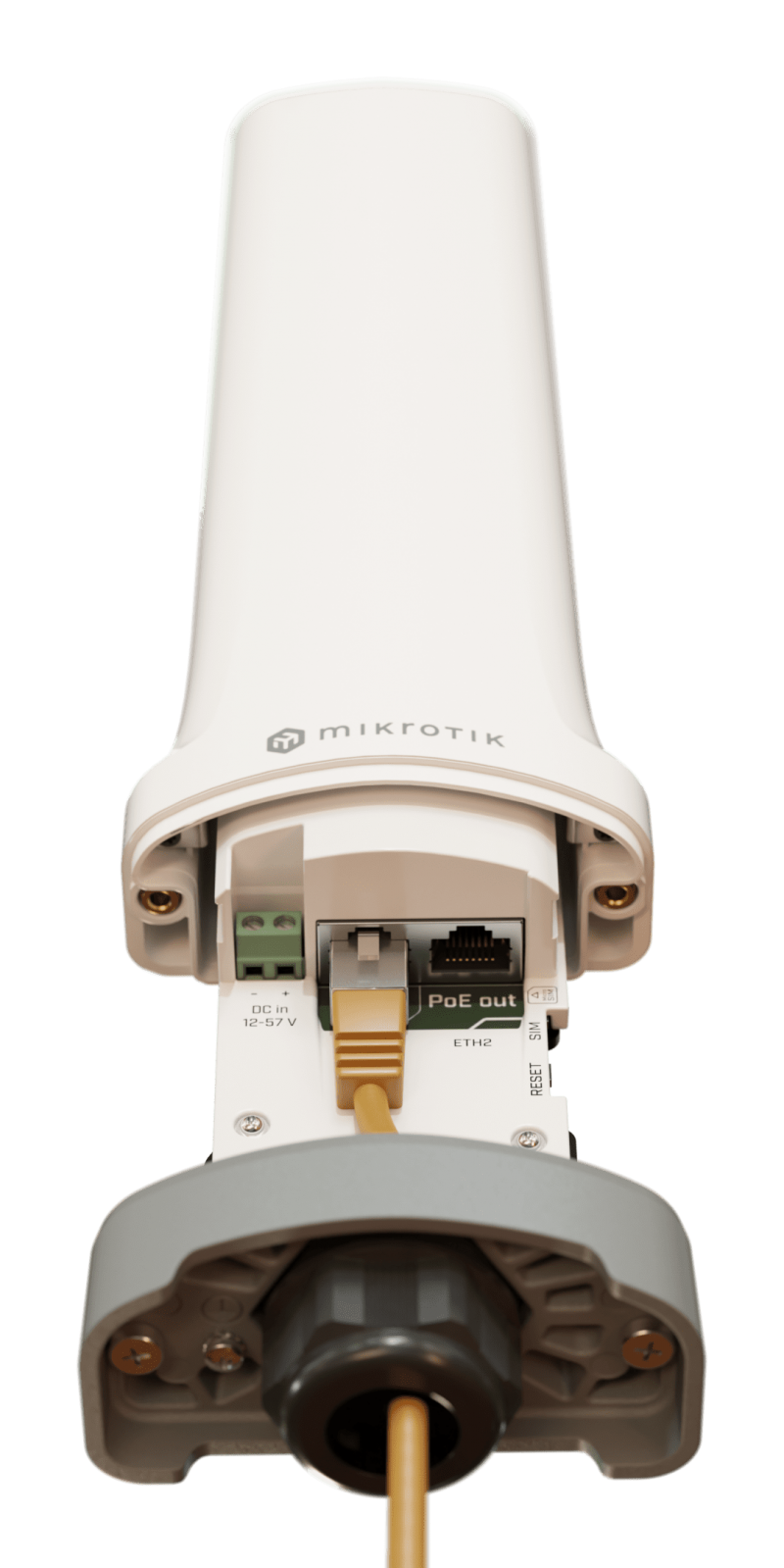

CME Gateway
A rugged low-cost, low-bandwidth modem to connect Ethernet devices to CAT-M mobile network... on the tightest budget ever!
Specifications
| Details | |
|---|---|
| Product code | CME22-2n-BG77 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| Switch chip model | QCA9531 |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $89.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 2 (PoE-IN, 2-pin terminal) |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 31 W |
| Max power consumption without attachments | 6 W |
| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether2 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 450 mA |
| Max total out (A) | 0.6 A |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 150 Mbit/s |
| Wireless 2.4 GHz number of chains | 1 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 2 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Modem (Nano SIM) |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 66 |
Included parts
