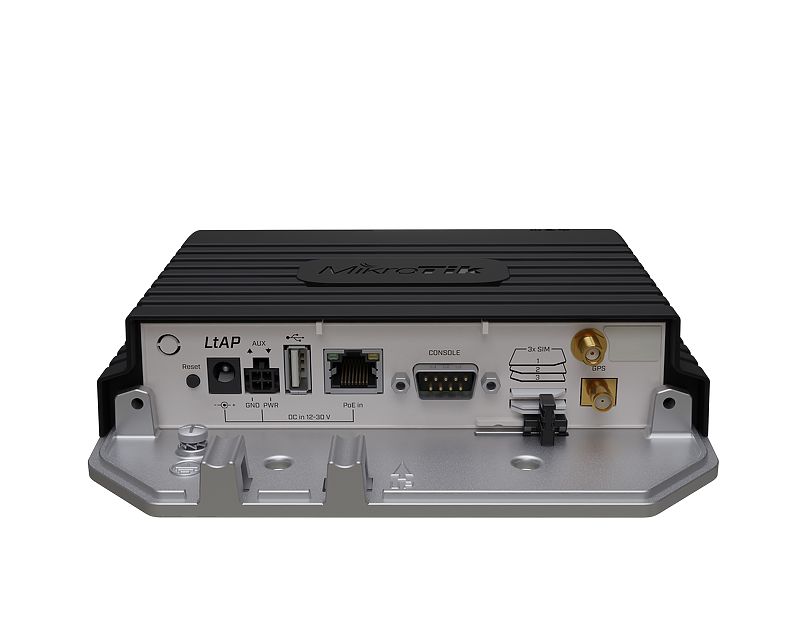

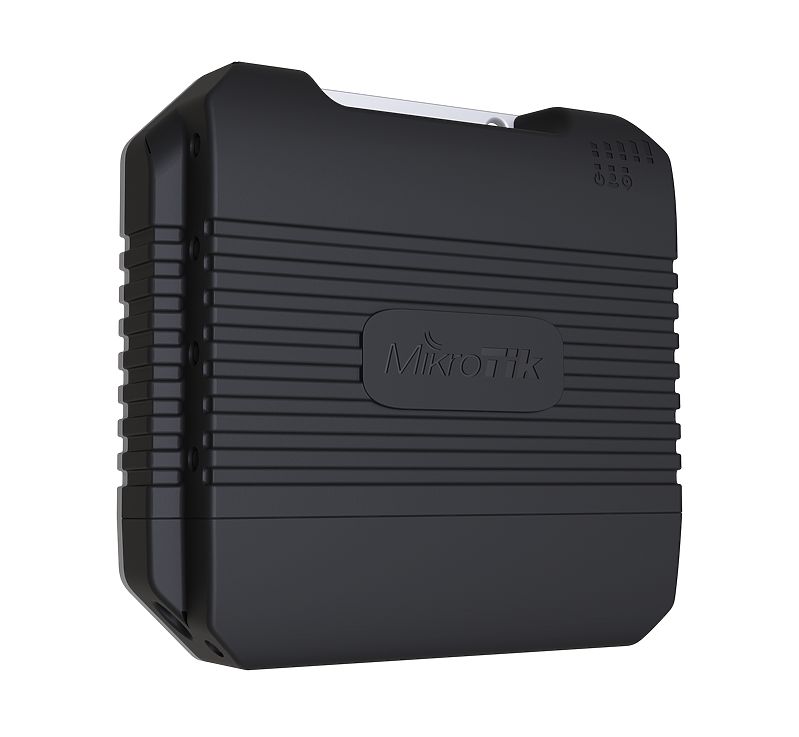

LtAP LR8 LTE kit

Specifications

Details
Product code RBLtAP-2HnD&R11e-LTE&LR8
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU Threads count 4
Dimensions 170 x 162 x 40 mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $269.00

Powering

Details
PoE in Passive PoE
PoE in input Voltage 12-30 V
Number of DC inputs 3 (Automotive, PoE-IN, DC jack)
DC jack input Voltage 12-30 V
Automotive input Voltage 12-27 V
Max power consumption 24 W
Max power consumption without attachments 9 W
FAN count Passive

Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 4 (150Mbps Downlink, 50Mbps Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz)

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model AR9382
Wireless 2.4 GHz generation Wi-Fi 4

Ethernet

Details
10/100/1000 Ethernet ports 1

Peripherals

Details
Serial port RS232
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s25-100
11MBit/s25-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
