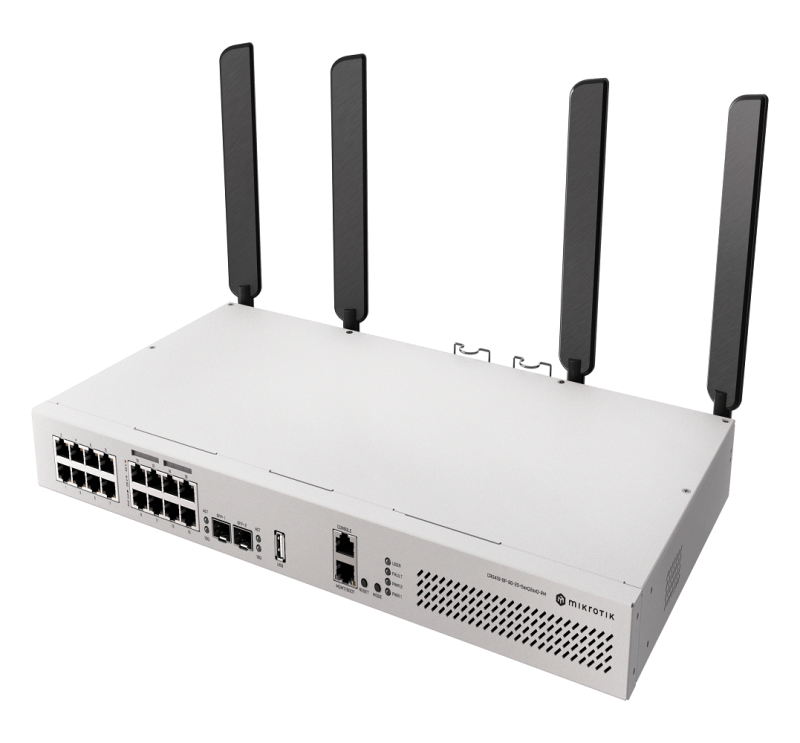

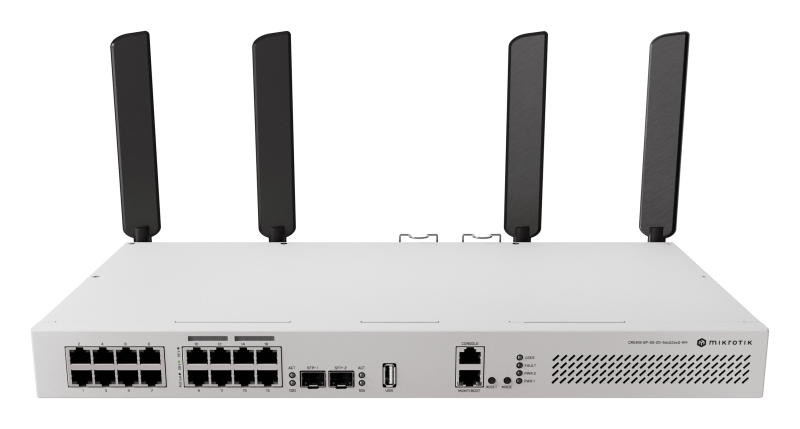

CRS418-8P-8G-2S+5axQ2axQ-RM

Switch/router all-in-one enterprise dari MikroTik dengan Wi-Fi 6 4×4 MIMO terintegrasi, 16 port Gigabit Ethernet, PoE-out, dan dua uplink 10G SFP+ — dalam satu unit rackmount 1U yang hemat biaya.

Fitur Lengkap

01Wi-Fi 6 dual-band (2.4 GHz & 5 GHz) dengan 4×4 MIMO — performa nirkabel tertinggi dari MikroTik untuk lingkungan padat

0216 port Gigabit Ethernet (8 PoE-out 802.3af/at) + 1 port manajemen dedicated terhubung langsung ke CPU

032x port SFP+ 10G untuk uplink berkecepatan tinggi ke NAS, server, atau switch core tanpa bottleneck

04Quad-core ARM 64-bit 2.2 GHz + L3 hardware offloading — mampu menggantikan router, firewall, dan CAPsMAN controller sekaligus

05PoE-out total 150 W untuk mensuplai AP, kamera CCTV, dan perangkat VoIP tanpa adaptor eksternal

06Casing rackmount 1U kokoh dengan lubang pigtail antena di belakang untuk fleksibilitas penempatan antena eksternal

07RouterOS v7 License Level 5 sudah terinstal — VLAN, QoS, firewall, routing dinamis, gratis update seumur hidup produk

081 GB RAM DDR3 + 128 MB NAND storage + USB 3.0 — performa switching dan routing stabil di lingkungan enterprise

Specification

Specifications

• Product codeCRS418-8P-8G-2S+5axQ2axQ-RM
• Suggested price-
• ArchitectureARM 64bit
• CPUIPQ-8072A
• CPU core count4
• CPU nominal frequency2208 MHz
• CPU Threads count4
• Switch chip model98DX226S
• RouterOS license5
• Operating SystemRouterOS v7
• Size of RAM1 GB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-20°C to 70°C

Powering

• Number of AC inputs2
• AC input range100-240
• Number of PSU slots2
• Frequency (Hz)50-60
• Max power consumption227 W
• Max power consumption without attachments43 W
• Cooling type4 fans

PoE-out

• PoE-out portsEther9-Ether16
• PoE out802.3af/at
• Low voltage PoE-Out current limit1.1 A
• High voltage PoE-Out current limit0.56 A
• Total output power150

Wireless specifications

• Wireless 2.4 GHz Max data rate1148 Mbit/s
• Wireless 2.4 GHz Number of chains4
• Wireless 2.4 GHz standards802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz5
• Wireless 2.4 GHz chip modelQCN-5024
• Wireless 2.4 GHz generationWi-Fi 6
• Wireless 5 GHz Max data rate2400 Mbit/s
• Wireless 5 GHz Number of chains4
• Wireless 5 GHz standards802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz6
• Wireless 5 GHz chip modelQCN-5054
• Wireless 5 GHz generationWi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports17
• Number of 1G Ethernet ports with PoE-out8

Fiber

• SFP+ ports2

Peripherals

• Serial console portRJ45
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB 3.0 type A
• Max USB current (A)1

Other

• CPU temperature monitorYes
• Current MonitorYes
• PCB temperature monitorYes
• Voltage MonitorYes
• Mode buttonYes

Certification & Approvals

• CertificationCE, FCC, IC, EAC, ROHS
• IP20

Included parts

IEC cord

K-100 fastening set

IEC cord

Note

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
