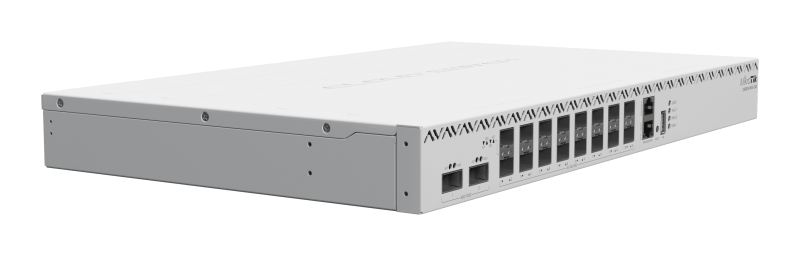

CRS518-16XS-2XQ-RM

With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, a 100 Gigabit switch for enterprise networks and data centers. Hot-swappable parts and insane port density with 1.2 Tbps switching capacity!

Remember our sensational 100 Gigabit switches – the CRS504 and CRS518? It’s time for another breathtaking addition to the MikroTik 100 Gigabit product family: the versatile CRS510-8XS-2XQ-IN!

This handy switch has two 100 Gigabit QSFP28 ports and eight 25 Gigabit SFP28 ports. This combination of ports guarantees a perfect fit in almost any setup or server room. Various direct attach cables, active optical cables, copper RJ45’s… CRS510 will keep everything connected! You’ll save time, money, and precious nerve cells with the backward compatibility. This unit supports all sorts of devices – 40 Gigabit, 25 Gigabit, 10 Gigabit, and even older Gigabit connections. And – speaking of nerve cells – we’ve kept the sysadmin’s emergency tool: the good old console port.

Another reason why we love the new CRS510 (and you will too!) is the performance. It can handle VLANs, ACL, MLAG, Jumbo frames, and so much more – even some L3 hardware offloading! The mighty Marvell Prestera switch chip dominates most tasks without blowing the power consumption up – only up to 27W (without attachments).

And when it comes to powering – CRS510 is a real joy to work with. It has dual hot-swap power supplies and three other powering options: PoE-in, DC jack, and a 2-pin terminal. No more unnecessary downtimes!


Specifications

Details
Product code CRS518-16XS-2XQ-RM
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 6
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $1595.00

Powering

Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 77 W
Max power consumption without attachments 45 W
Cooling type 4 fans

Ethernet

Details
10/100 Ethernet ports 1

Fiber

Details
Number of 25G SFP28 ports 16
Number of 100G QSFP28 ports 2

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Included parts
