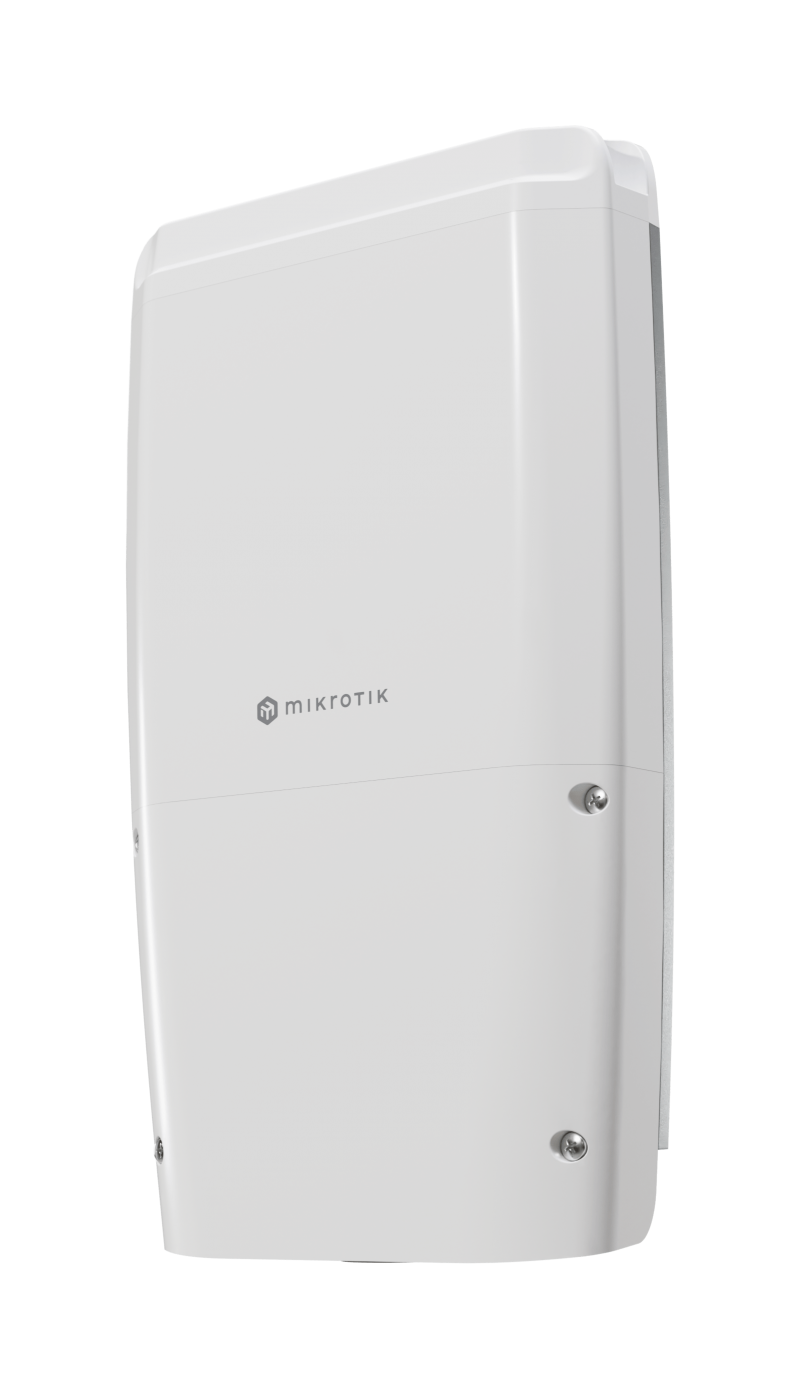

FiberBox Plus

There are two ways to look at the brand new Fiber Box Plus. On the one hand, it’s a massive upgrade of our previous FiberBox devices. This version features a modern ARM CPU, more RAM, and four 10-Gigabit SFP+ ports. Fast and reliable connectivity on a budget. Without the distance limitations of Ethernet. There’s also a Gigabit Ethernet port for management purposes or PoE-in powering. We’ve also included a 2-pin terminal and a standard DC jack, so you have 3 different power options to choose from. FiberBox Plus supports a wide input voltage range of 24-57V. And it is remarkably efficient: maximum power consumption (without attachments) is only 7W.

Another way to look at the new FiberBox Plus – it’s a budget version of the amazing netFiber 9. You can save a lot of money if you don’t need the extra Gigabit SFP ports. It even features the same impressive Marvell 98DX226S switch-chip, so the performance is definitely there!

This rugged outdoor switch is perfect for connecting mast devices. Like the mANTBox 52 or the LHG XL 52. Imagine a huge campsite with several guest houses, a food court, and the owner’s cabin. You can connect all the locations with the FiberBox Plus. One of the fiber connections can be used for the mANTBox base station – to provide general connectivity for the guests. Another connection could go to the owner’s house. And the third could be used in the food court – to connect their payment and inventory servers.

Usually, you would need some kind of a junction box to keep everything safe. But our FiberBox Plus comes with a solid water resistance rating of IP66. That means protection against powerful water jets from any direction. So in the campsite scenario, your setup is not only safe from all kinds of crazy weather, but it can also withstand young pranksters with a garden hose. Not to mention damp basements, elevator shafts, seaport infrastructure, and so on. With FiberBox Plus, you have nothing to worry about.



Specifications


Details
Product code CRS305-1G-4S+OUT
Architecture ARM 32bit
CPU 98DX226S
CPU core count 2
CPU nominal frequency 800 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System RouterOS v7 / SwOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $229.00



Powering


Details
Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 17 W
Max power consumption without attachments 7 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 42-57 V



Ethernet


Details
10/100/1000 Ethernet ports 1



Fiber


Details
SFP+ ports 4



Peripherals


Details
Serial console port RJ45


Other


Details
CPU temperature monitor Yes



Certification & Approvals


Details
Certification CE, EAC, ROHS
IP IP66




Included parts
