The RB2011 is a low cost multi port device series. Designed for indoor
use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing
operating system which has been continuously improved for fifteen years.
Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of
service, load balancing and bonding, real-time configuration and
monitoring - just a few of the vast number of features supported by
RouterOS.
The RB2011iL-RM includes a new feature - power injector on Ethernet
port 10 - it can power other PoE capable devices with the same voltage
as applied to the unit. Less power adapters and cables to worry about!
Maximum load on the port is 500mA. It is powered by the new Atheros
600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS
license, as well as five Gigabit Ethernet ports and five Fast Ethernet
ports for unbeliveable USD 99!

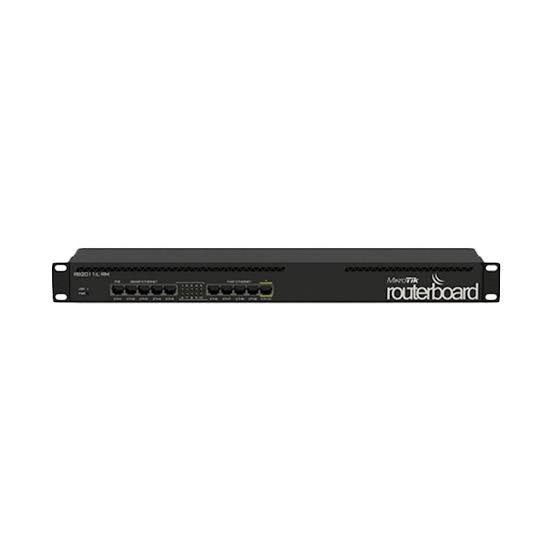

RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.
Specifications
| Details |
| Product code |
RB2011iL-RM |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 60°C |
| Suggested price |
$99.00 |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether10 |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
8-30 V |
| Max out per port output (input < 30 V) |
510 mA |
| Max total out (A) |
510 mA |
| Max power consumption |
18 W |
| Max power consumption without attachments |
6 W |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
| 10/100/1000 Ethernet ports |
5 |
Certification & Approvals
| Details |
| Certification |
CE/RED, EAC, ROHS |
Included parts
