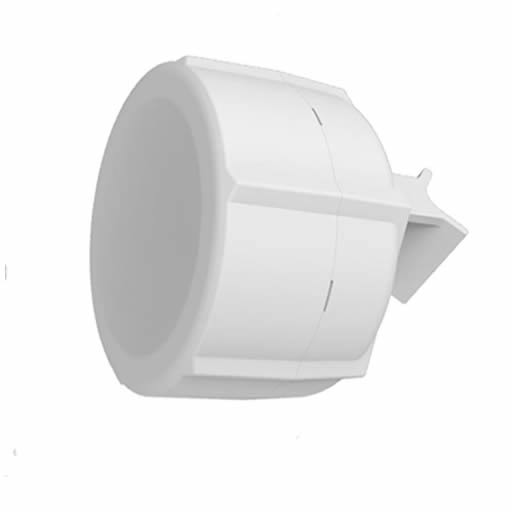

SXT R / RBSXTR

The SXT R is an integrated low-cost 10.5dBi LTE antenna WITHOUT LTE modem (free miniPCI-e slot). In the case, if for any reason you don't want to use one of our own LTE modems, you can simply buy the SXT R and install the modem of your choice.

The SXT R is a device for remote locations that are within cellular network coverage. However, due to it’s professional LTE chip design and high gain antenna, it can provide connectivity for your building even where cell phones can’t.

The unit is equipped with two Ethernet ports (the second port has PoE-out functionality), so you can use it to power up another device. The unit includes a 24 V power supply, but can support full range of 12-57 V and 18-57 V with PoE-Out and is 802.3af/at compliant.


Specifications

Details
Product code RBSXTR
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
License level 3
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C
Suggested price $79.00

Powering

Details
PoE in 802.3af/at
PoE in input Voltage 12-57 V
PoE out Passive PoE up to 57V
PoE-out ports Ether2
Number of DC inputs 1 (PoE-IN)
Max out per port output (input > 30 V) 400 mA
Max out per port output (input < 30 V) 600 mA
Max total out (A) 600 mA

Ethernet

Details
10/100 Ethernet ports 2

Peripherals

Details
Number of SIM slots 2 Modem (Micro SIM)
MiniPCI-e slots 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS

Included parts
