The new AC standard is here, with up to 866Mbit over the air
datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up
new possibilities and speeds never possible before.

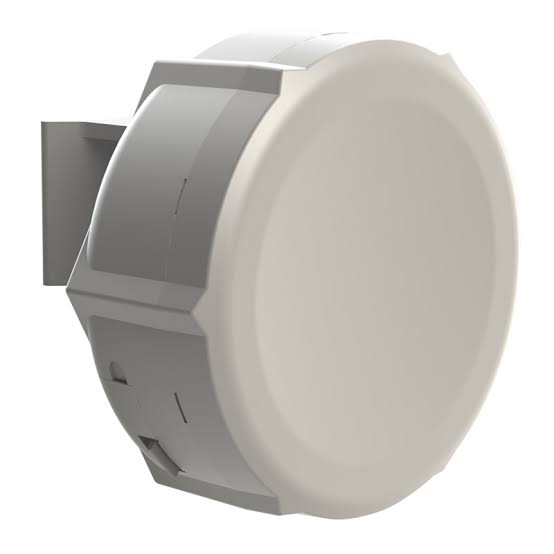

The SXT ac is a new member in our 802.11ac product lineup, currently
two models are available — with regular 28 degree antenna, and the SA
model with a 90 wide beam - width sector antenna. Also support 802.11a/n
standard, Nstreme and Nv2 protocols and are compatible with all legacy
RouterBOARD devices.
Both devices come with Gigabit Ethernet.
New products are backwards compatible - for example, you can replace
your 5GHz 802.11a/n legacy Access Point with new 802.11ac product and
your existing customers will still be able to connect to it.
Specifications
| Details |
| Product code |
RBSXTG-5HPacD-SA |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$119.00 |
Powering
| Details |
| PoE in |
802.3af/at |
| PoE in input Voltage |
12-57 V |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
12 W |
Wireless
| Details |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
14 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
Ethernet
| Details |
| 10/100/1000 Ethernet ports |
1 |
Peripherals
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
Certification & Approvals
| Details |
| Certification |
CE/RED, FCC, IC, EAC, ROHS |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 31 | -96 |
| 54MBit/s | 28 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |
Included parts
